Design

Design of dies/stamping tools and products etc. is preformed in CAD systems as Catia V5, Solidworks, Siemens and NX. All requirements are managed “outside the box” by team of experts. Most effective procedures are used to provide highest possible quality and competetivness of our products.

“Construction of stamping tools and jigs is done in the latest CAD systems, operated by enginers with many years of experience.”

CAD
data of parts

Drafting and approval
of 2D tool layout

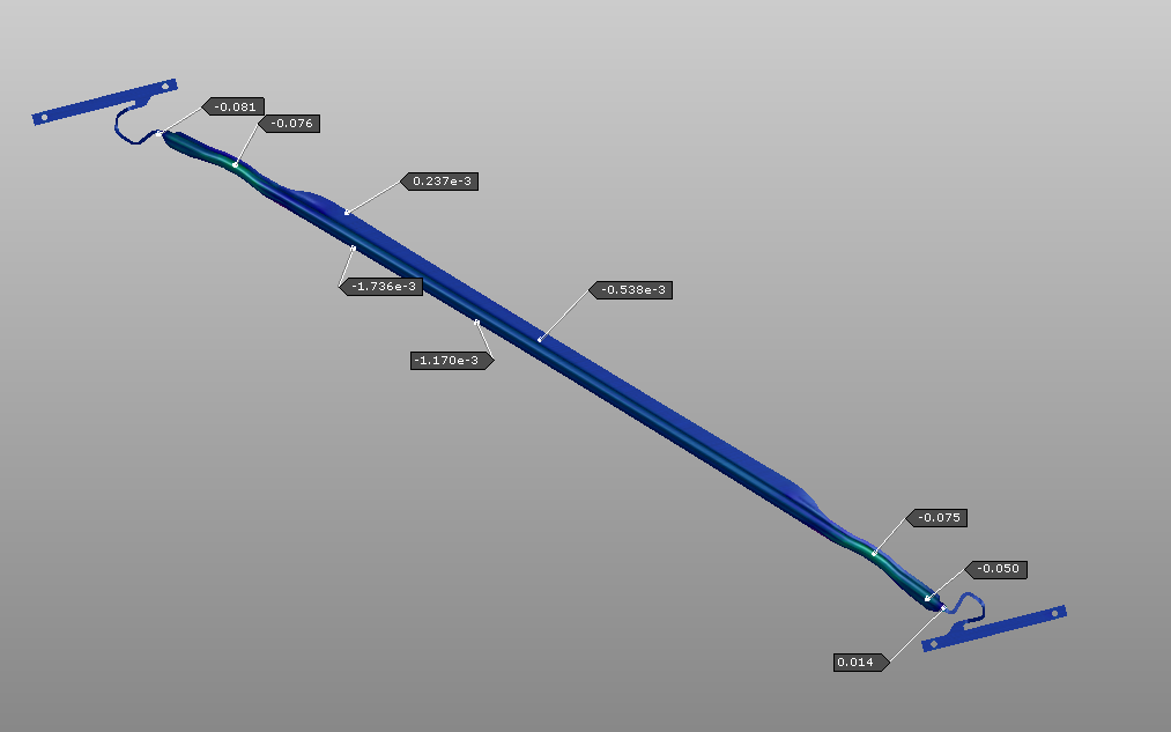

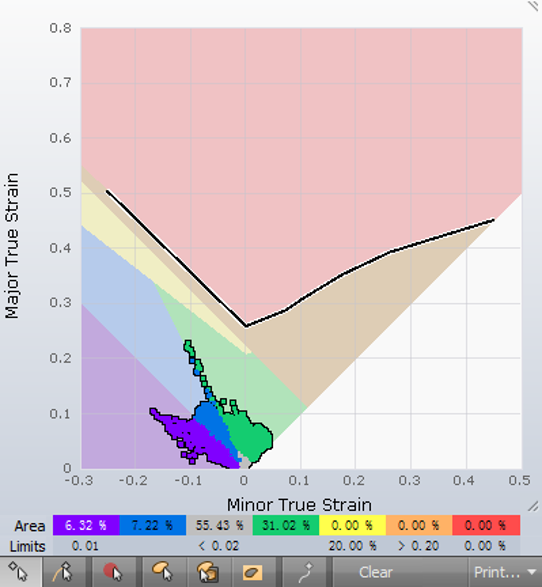

CAE
(or validation in prototyping phase)

3D
construction

Design
approval

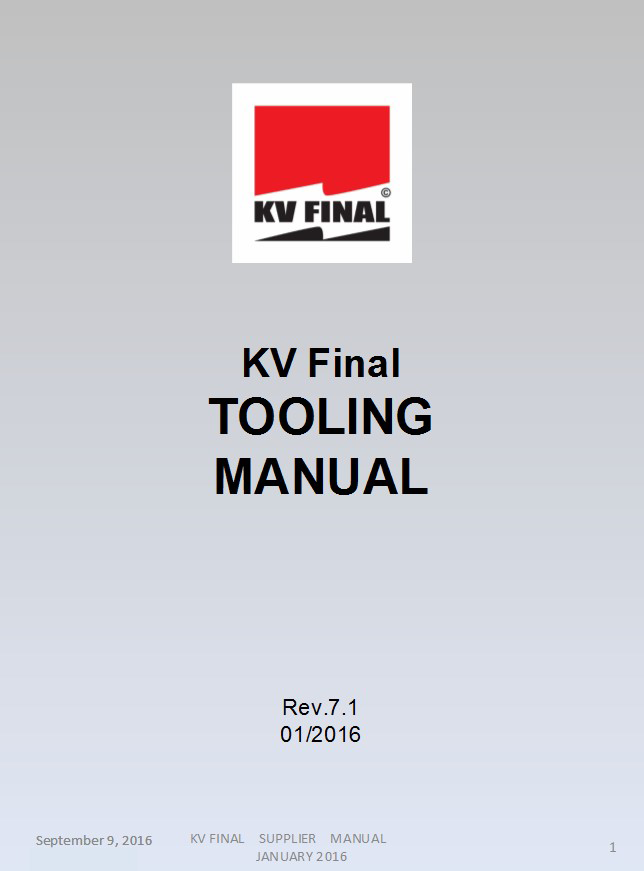

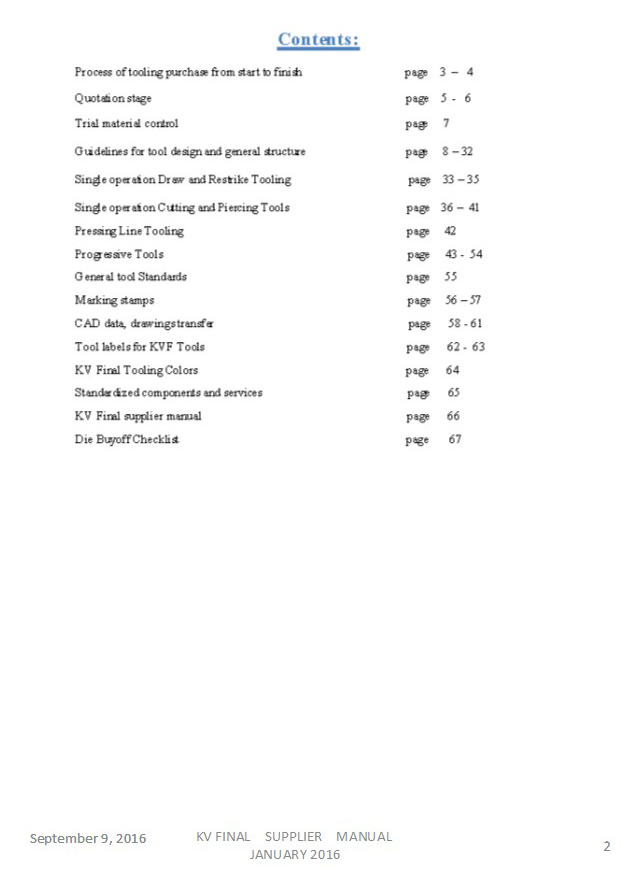

KV Final Standard

All tool details are strictly monitored according to the long-term KV Final Tooling Standard.
